Alieno Pre Phono Extremo

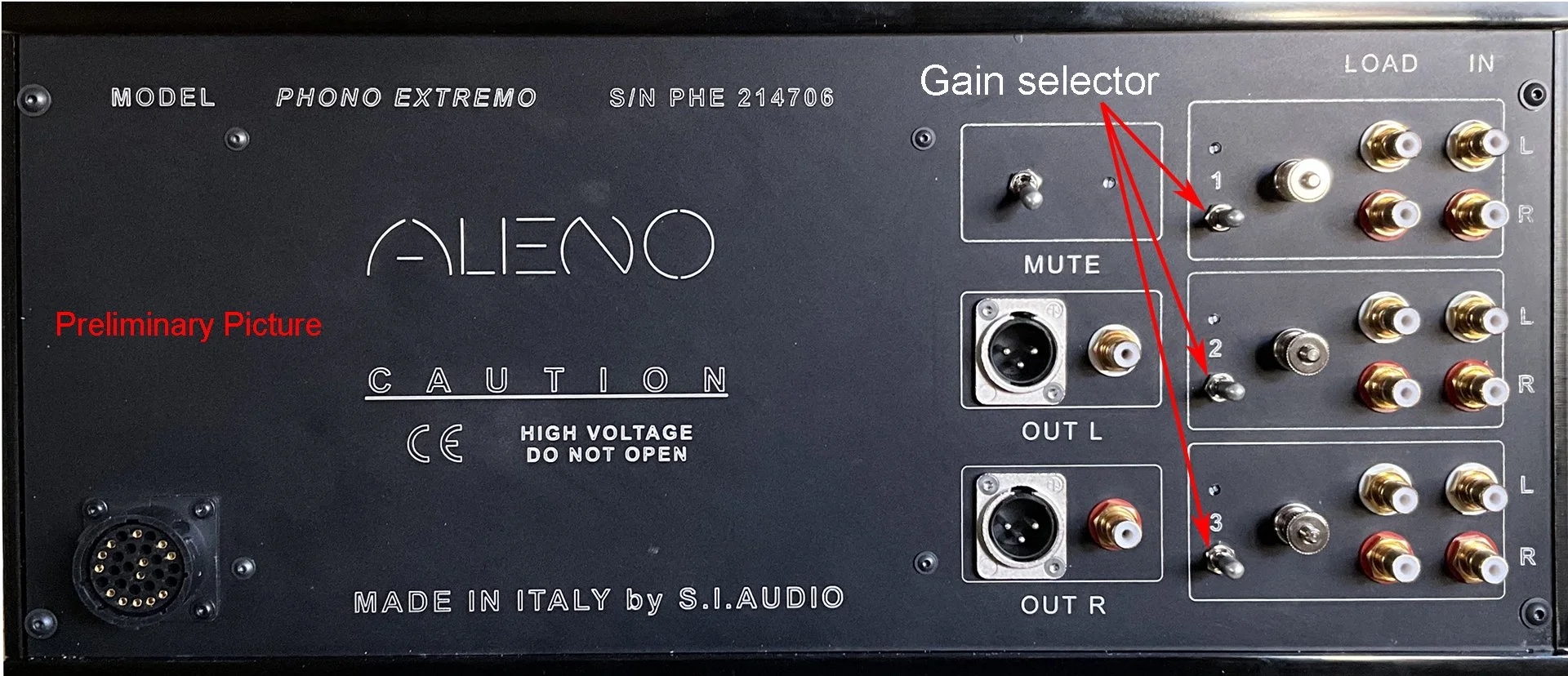

ALIENO Phono Extremo is a tube phono preamplifier for Moving Coil cartridges. It is equipped with three RCA inputs, each of which has independent adjustments to vary the gain (66 – 60 – 54 dB) and the load resistance of the cartridge via blind Rca connectors; these adjustments can be made from the rear panel near each input. The rear panel also houses the output available on RCA and XLR connectors, a switch to enable muting during cable connection operations and the multi-pole connector for the power supply which is in a separate cabinet with Virtual Battery Powered technology.

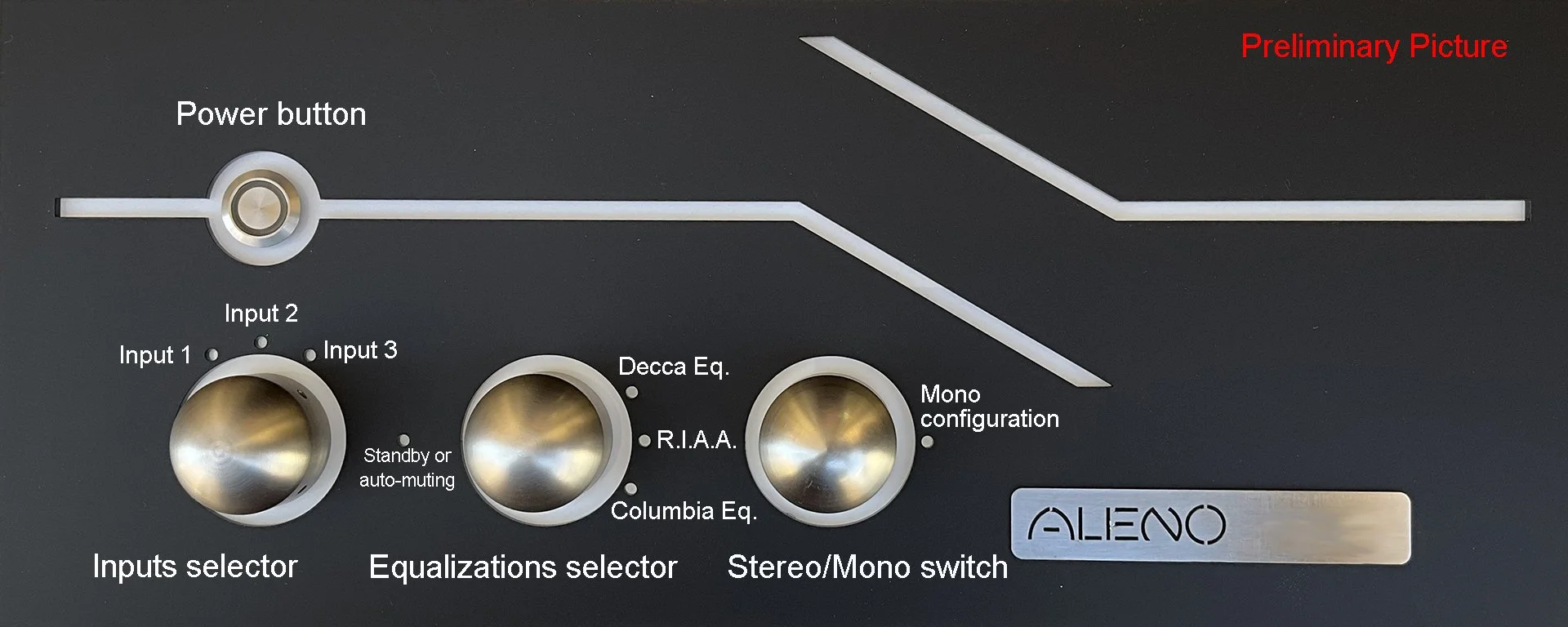

The other adjustments are on the front panel where, starting from the left, there is: a knob to select the inputs, one to vary the equalization curve among the three available (Decca,  R.I.A.A., Columbia) and the last one on the right to switch to mono operation.

All these adjustments can be operated during LP playback, as an automatic muting system prevents any possible switching disturbances from reaching the speakers.

The overall internal impedance of the circuit is less than 250 Ohm, for a perfect match even with very low impedance line preamplifiers (from 2500 Ohm and up).

Alieno Pre Phono Extremo Preamplifier
Alieno Pre Phono Extremo Rear View
Alieno Pre Phono Extremo

TECHNICAL SPECIFICATIONS

  • Three Rca inputs, selectable from the front panel;   output on Rca and XLR connectors.

  • Three equalizations available, selectable from the front panel: Decca, R.I.A.A., Columbia

  • Stereo-Mono switch on the front panel.

  • Gain: 66 – 60 – 54 dB selectable from the rear panel.

  • Cartridge load: via Rca plugs of the following values: 100, 220, 330, 470, 750, 1000 Ohm.

  • Signal to noise ratio: > 80dB @ 1mV input.

  • Total harmonic distortion: < 0,05 %.

  • Equalizations frequency response:  +/- 0.1dB.

  • Headroom (max. output level with zero distortion): over 25 Vrms.

  • Output impedance: 250 Ohm, low value ideal also for driving line preamp or integrated amplifiers with critical impedances starting from 2500 Ohm.

  • Tubes: 12AY7 and ECC83, low-noise amplifier cascode stage;

    • E8CC driver stage of equalization networks;

    • ECC82 further amplifier stage;

    • E88CC buffer stage to drive the output.

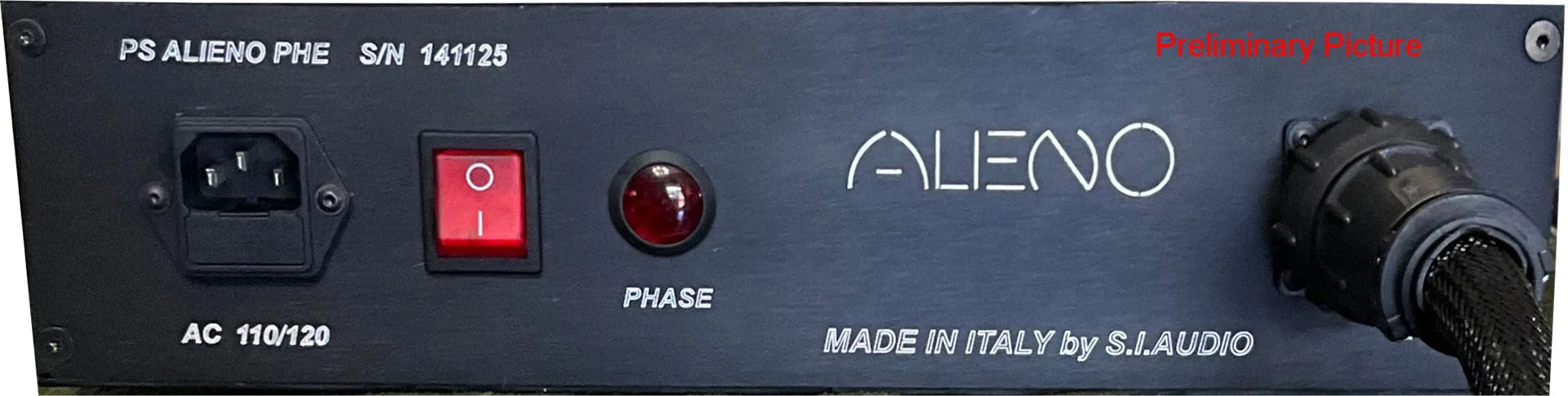

  • Power supply unit with Virtual Battery Powered technology: 240-115 V~ ±10% / 50-60 Hz

  • Main fuse: T1Ampere (T2Ampere for 115 V).

  • Power consumption: 100VA approx.

  • Dimensions:

    • Amplifier section: L x P x H, cm/inch. 45/17,7” x 41/16,1” x 22/8,6, weight 15 kg – 33 lb.

    • Power supply section: L x P x H, cm/inch. 33/13” x 32/12,6” x 10/4”, weight 9 kg – 19,8 lb.
