ortofon moving magnet cartridges
The OM 5S is a moving magnet cartridge for general purpose application.
Stylus type - Spherical
Stylus tip radius - R 18 µm
Tracking force, recommended - 1.75 g (17.5 mN)
OM 5E features Elliptical stylus that provides balanced and distortion-free playback. Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds. This results in better tracking and less distortion.
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force, recommended - 1.75 g (17.5 mN)
OM Super 5 cartridge body is manufactured from a Noryl (plastic & glass compound) which ensures high rigidity and freedom from resonances.
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force, recommended - 1.75 g (17.5 mN)
The 2M Red features a tipped Elliptical diamond and split pole pins with a copper wire. An improved engine provides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy.
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force, recommended - 1.8 g (18 mN)
The 2M Blue adds more dynamics and resolution, sounds more open and reproduces more details compared to the 2M Red model.
Stylus type - Nude Elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force, recommended - 1.8 g (18 mN)
The 2M Bronze uses a special upgraded engine, featuring split pole pins with a silver plated copper wire.
Stylus type - Nude Fine Line
Stylus tip radius - r/R 8/40 µm
Tracking force, recommended - 1.5 g (15 mN)
The 2M Black is graced with a Shibata diamond which slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum.
Stylus type - Nude Shibata
Stylus tip radius - r/R 6/50 µm
Tracking force range - 1.4-1.7 g (14-17 mN)
Tracking force, recommended - 1.5 g (15 mN)

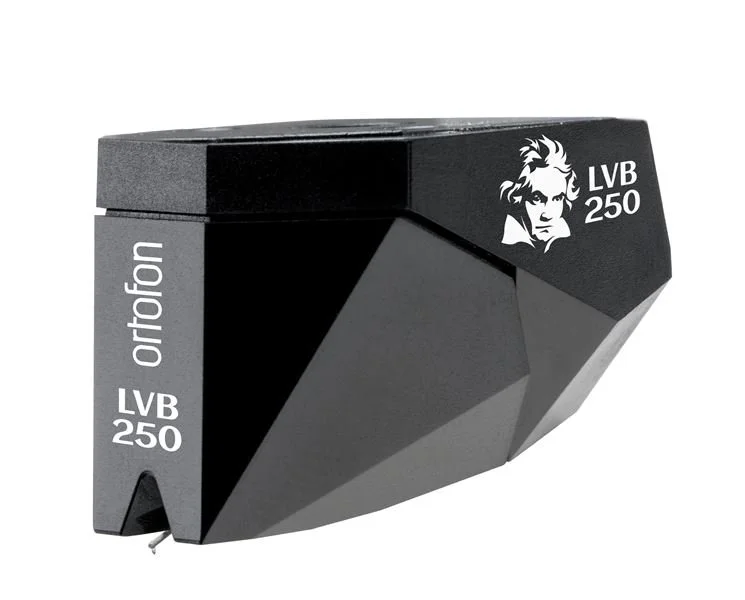

To commemorate the 250th anniversary of the birth of Ludwig van Beethoven, we announce the release of the 2M Black LVB 250 Exclusive Model.
The 2M Black LVB 250 uses a Nude Shibata diamond on a Boron cantilever, the combination known from the acclaimed MC Cadenza Black cartridge.
Stylus type - Nude Shibata
Stylus tip radius - r/R 6/50 µm
Cantilever material - Boron
Tracking force, recommended - 1.6 g (16 mN)
