Master Series
Master Server｜Master Streamer
Return to the Essence of Digital Music
Concept
In the field of digital audio, most products continue to increase computing power and expand functionality.
Telos returns to a fundamental question:
Why does sound become distorted?
The answer is simple — not insufficient processing, but excessive interference.
The Master Series is built on this principle:
reduce interference, not increase processing.
Design Philosophy
Telos defines the system through three core variables:
Power
Mechanical Structure
Temperature
These variables determine signal stability. Rather than correcting the signal afterward, the Master Series controls these factors at the source.
Core Technologies

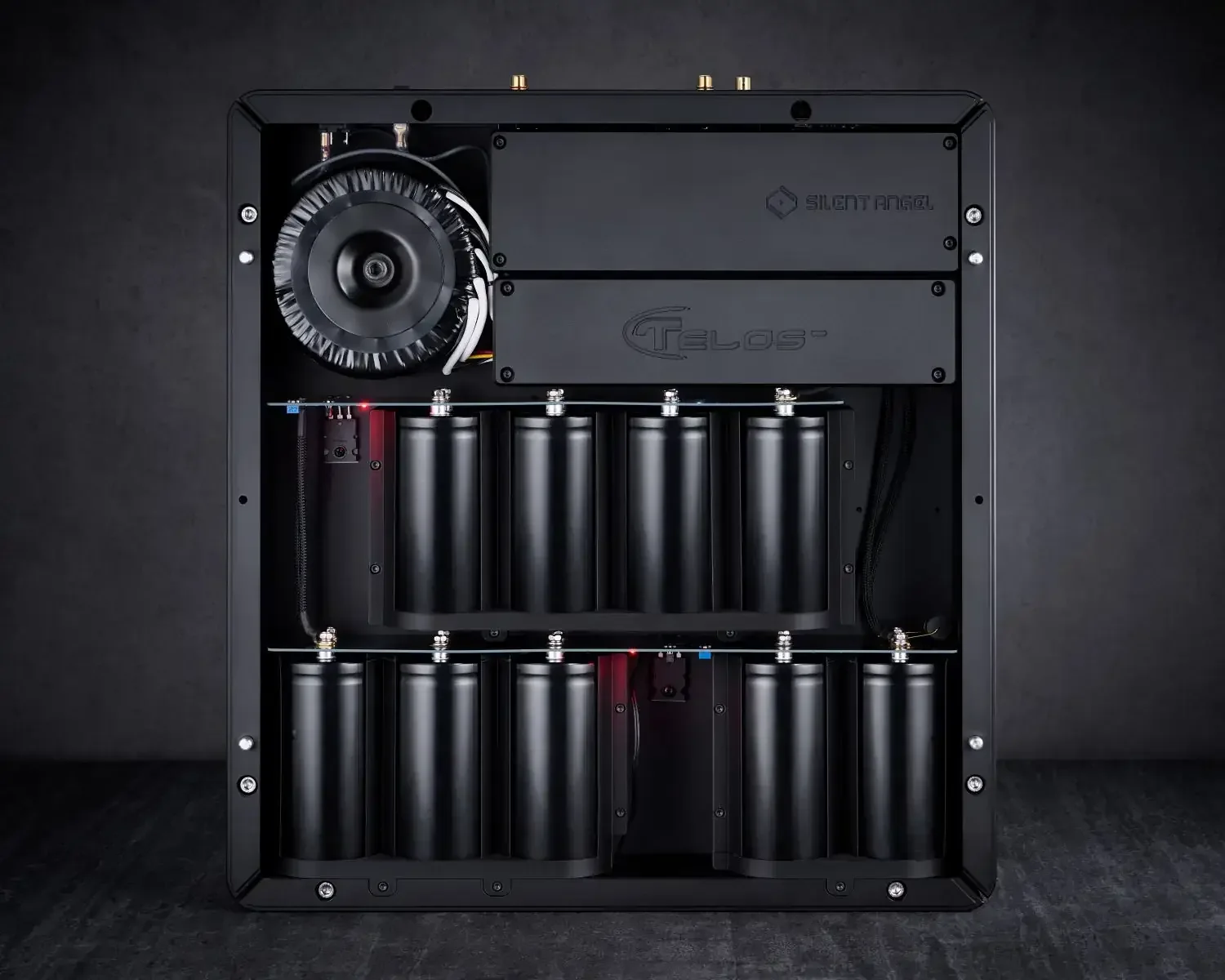

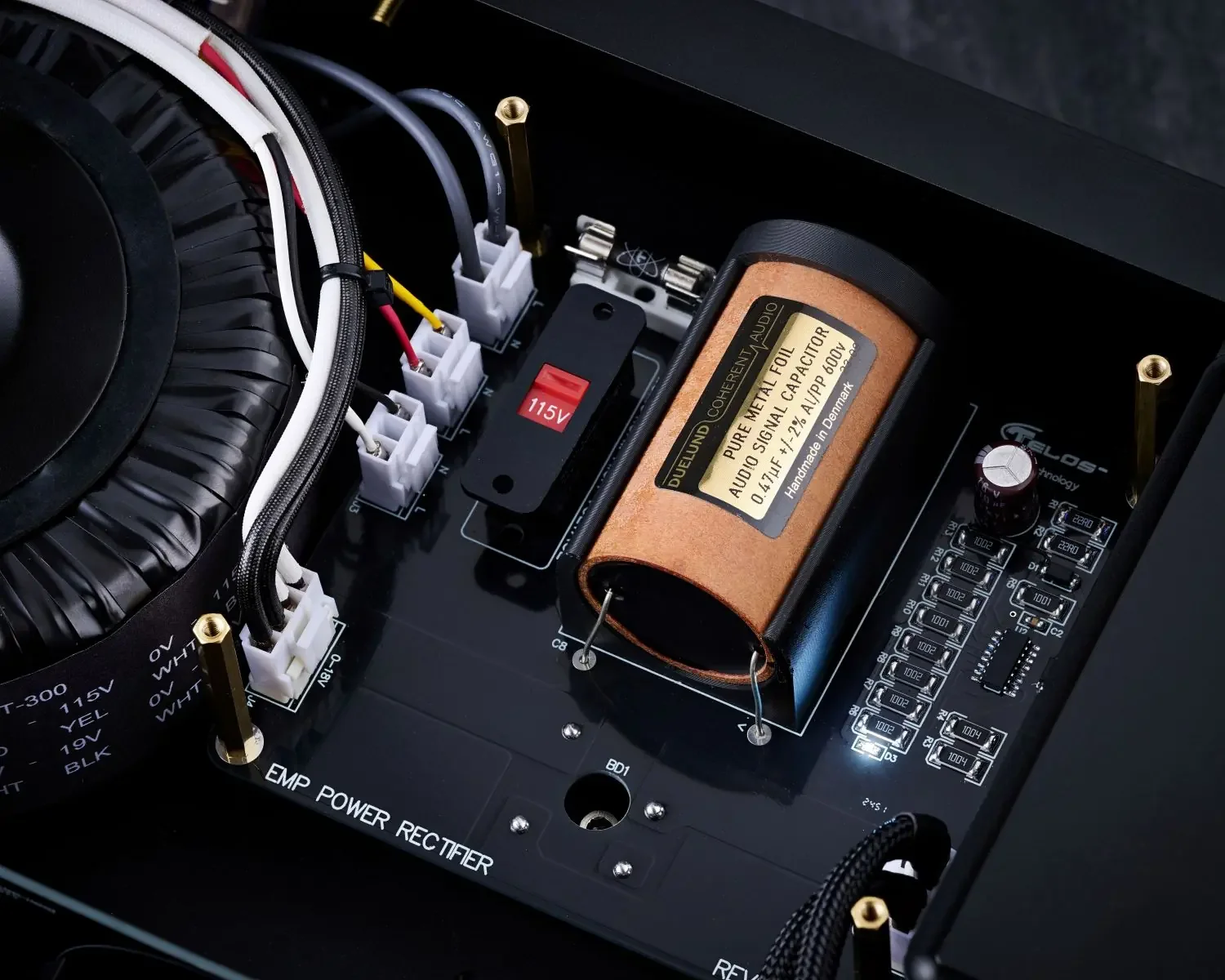

Power Architecture
160V high-capacity capacitors
Custom transformers (flat silicon steel laminations × multi-layer isolation)
Dual-stage regulation × stepped noise filtering
Duelund capacitors × AC noise suppression modules
To ensure the power supply leaves no trace.
Mechanical Structure
Six-sided vibration-damping chassis
Isolation of power / signal / processing sections
CNC-machined high-rigidity aluminum structure
Thermal Management
Large-area aluminum heat conduction
Structural cooling for transformer / power devices / CPU
Fanless design
Digital Architecture
The Master Series is built upon a stable and proven digital computing foundation.
Its digital core is based on a well-established music server architecture, offering reliable system performance and mature software integration capabilities.
For this foundation, Telos adopts the Silent Angel server platform.

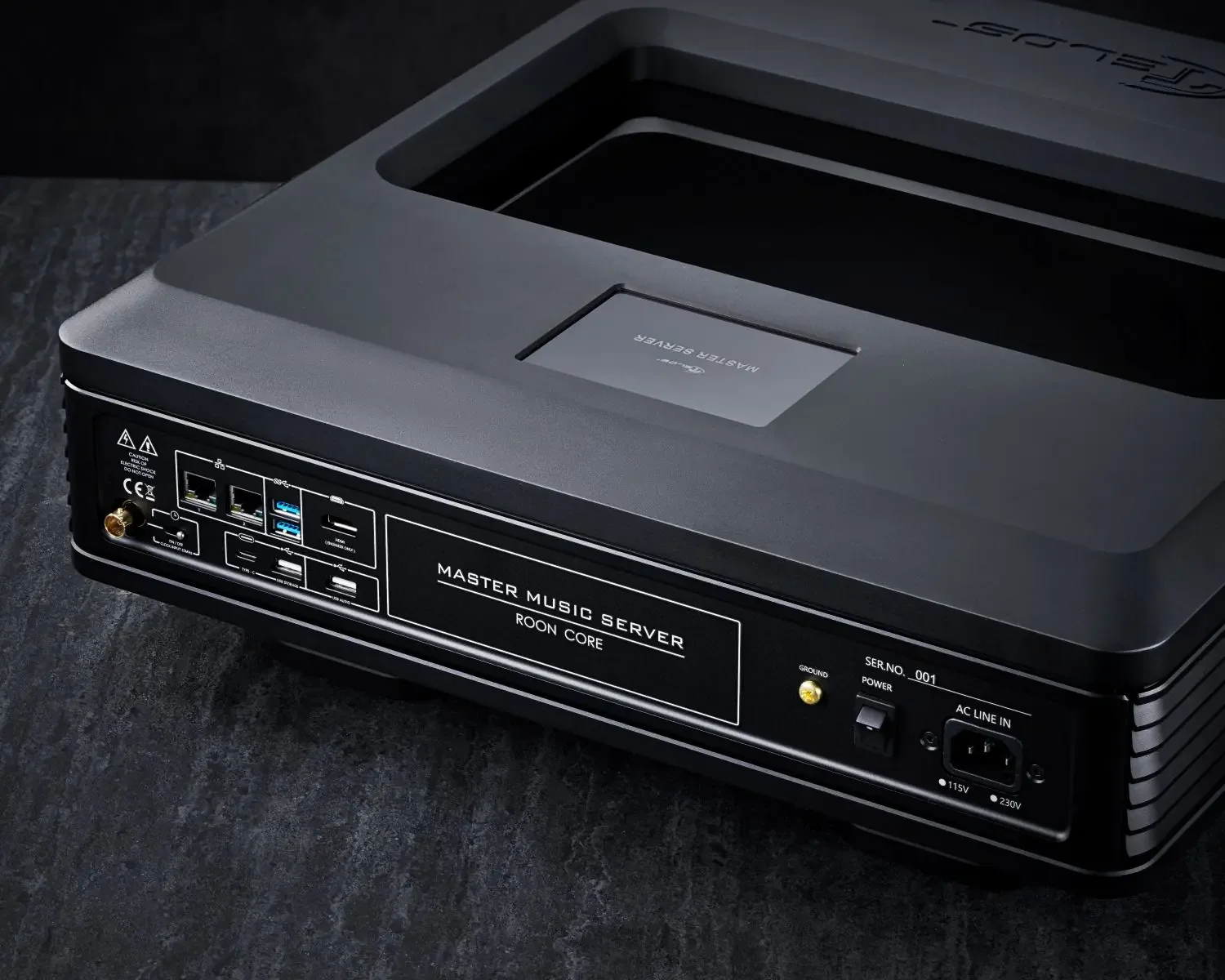

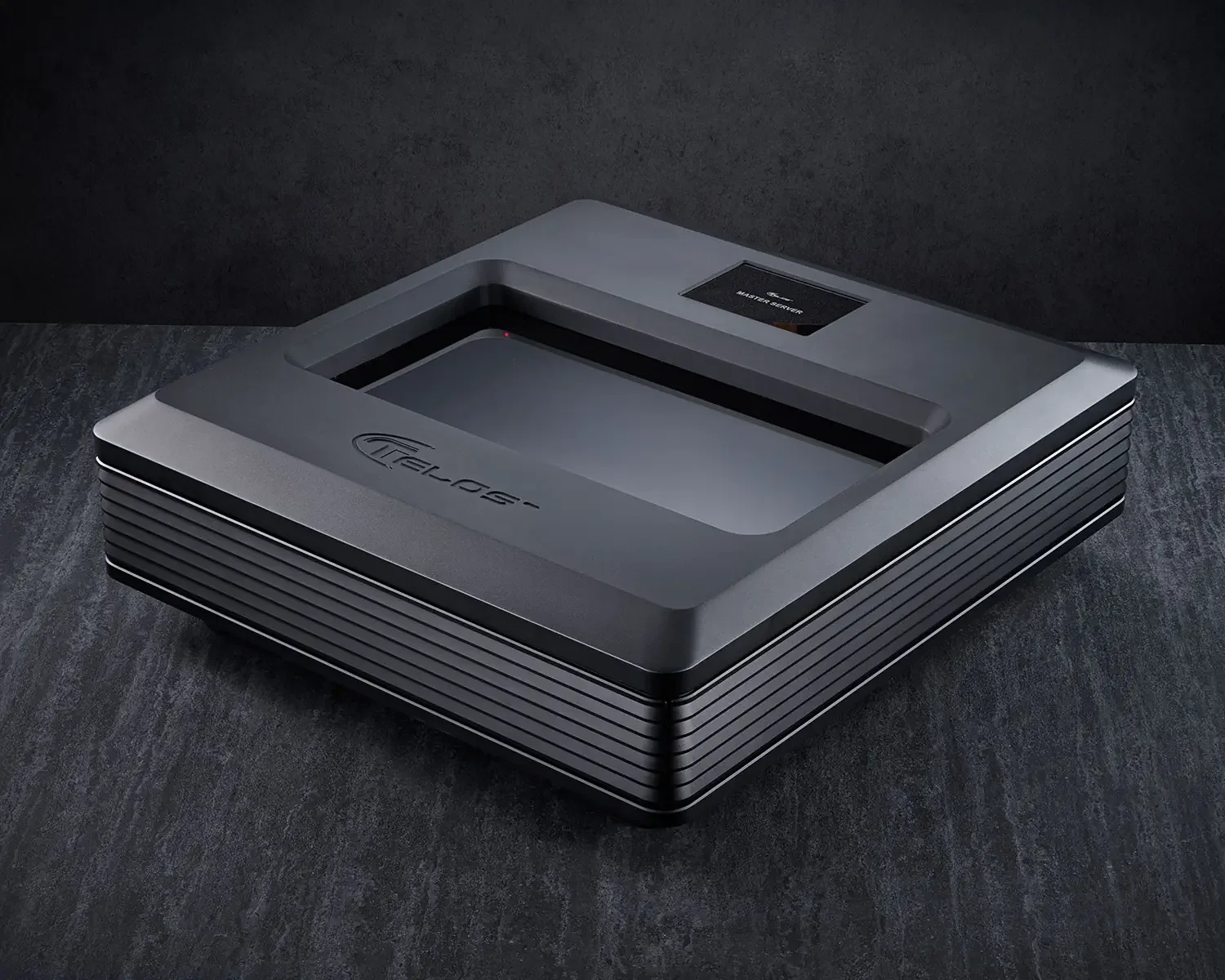

Master Server
Hardware Specifications
CPU: Quad-core processor (J6413)
Memory: 16GB / 32GB
NVMe SSD storage
PCM 768kHz / DSD512 support
TCXO precision clock
(external 25MHz supported)Dual-network architecture
USB audio noise reduction
Network
Ethernet: 2 × Gigabit LAN
Dual-network architecture (Data / Player separation)
USB: USB Audio ×1 (to DAC) / USB 3.1 ×2 / USB 2.0 ×1 / USB-C ×1
External Clock: 25MHz Word Clock input (BNC)
Audio Format Support
PCM: up to 768kHz / 32bit
DSD: up to DSD512
Roon DSP: supports PCM → DSD256 conversion
MQA: officially certified support
USB audio noise reduction design
Sound Optimization (Audiophile Highlights)
TCXO precision clock (25MHz)
USB Audio noise reduction circuit (2nd Generation)
EMI absorption materials
Power noise filtering modules
Fanless design

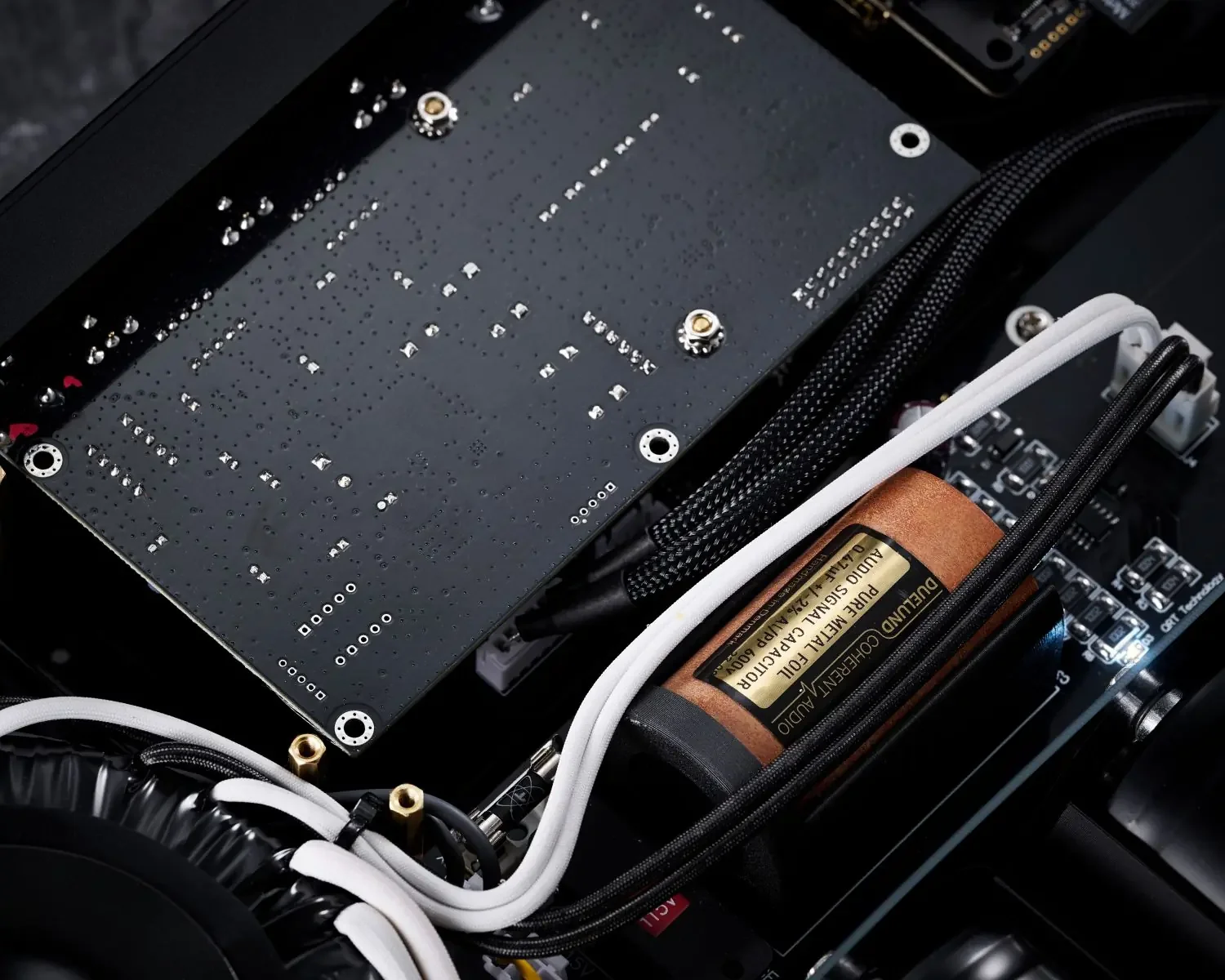

Master Streamer
Hardware Specifications
CPU: 6-core processor (ARM architecture)
Memory: 4GB low-noise RAM
Storage: 32GB
High-precision digital output
USB / AES / Coaxial / LAN outputs
Low-jitter clock
Dedicated power & grounding optimization
Network
LAN: 1 × Gigabit Ethernet
USB: USB 3.0 ×2
USB 2.0 ×1
USB Audio ×1
Audio Format Support
PCM up to 768kHz
DSD up to DSD256
Formats: FLAC / WAV / ALAC / AIFF / DSD / MP3
DAC & Audio Architecture
ESS SABRE DAC
RCA / XLR outputs
AES/EBU / I²S / Coaxial
External DAC supported
Clock & Audiophile Design
TCXO precision clock
10MHz / 25MHz external clock
EMI suppression and isolation
System & Features
VitOS Orbiter
Roon Ready / Spotify Connect / Qobuz / DLNA / AirPlay 2
Specifications
Master Server
Dimensions：446 (W) × 150 (H) × 484.42 (D) mm
Net Weight：38.5 kg
Power：110 / 220 V
Power Cord Type：US / EU / AU
Package Dimensions：630 × 550 × 290 mm
Gross Weight：53.5 kg
Master Streamer
Dimensions：446 (W) × 150 (H) × 484.42 (D) mm
Net Weight：39 kg
Power：110 / 220 V
Power Cord Type：US / EU / AU
Package Dimensions：630 × 550 × 290 mm
Gross Weight：54 kg
